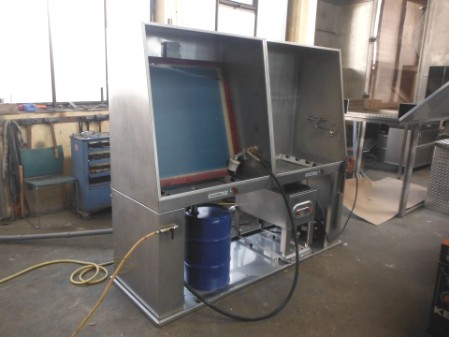

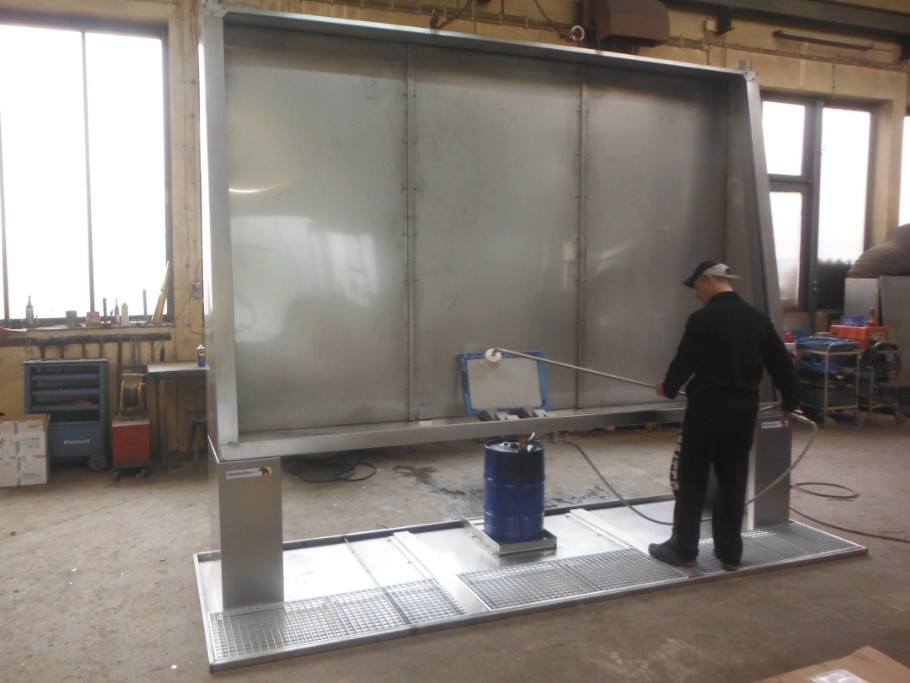

Waschwanne 08/15
Waschanlagen > Anlagen für den Sieb- und Textildruck
- up to screen size 3200x2200mm
- pat. docking device for 58l barrel
- Roller conveyor for barrel
- pneum. control
- integrated pat. inclined filter system
- Edge suction via venturi nozzles
- Floor pan
Presentation at YOUTUBE

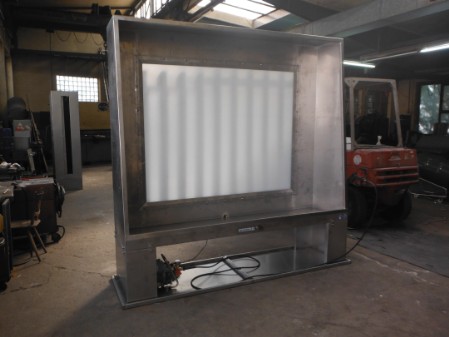

Wash tub 08/15 LED:

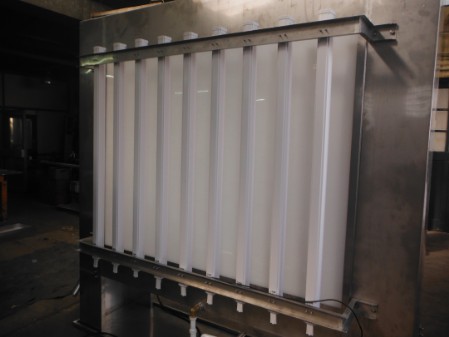

- with switchable energy-saving LED backlight
- High-pressure cleaner Kränzle

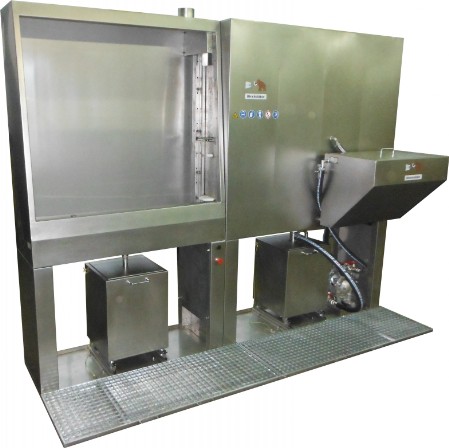

08/15 Duo
2 separate wash basins:
Chamber 1:
pat. docking device for standard 58l detergent drum
Washing brush with pneum. washing pump
Chamber 2:
with mixer tap for hot / cold water connection
required connections:
- Compressed air connection
- Cold / hot water connection
- Sewage connection
08/15 Duo with high pressure pump and cascade filter

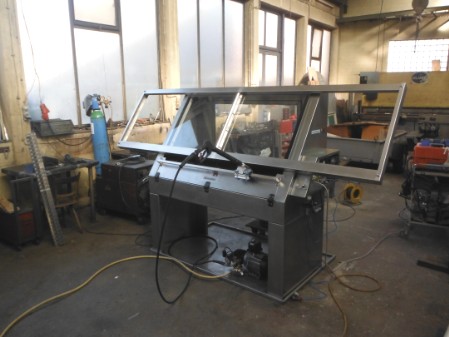

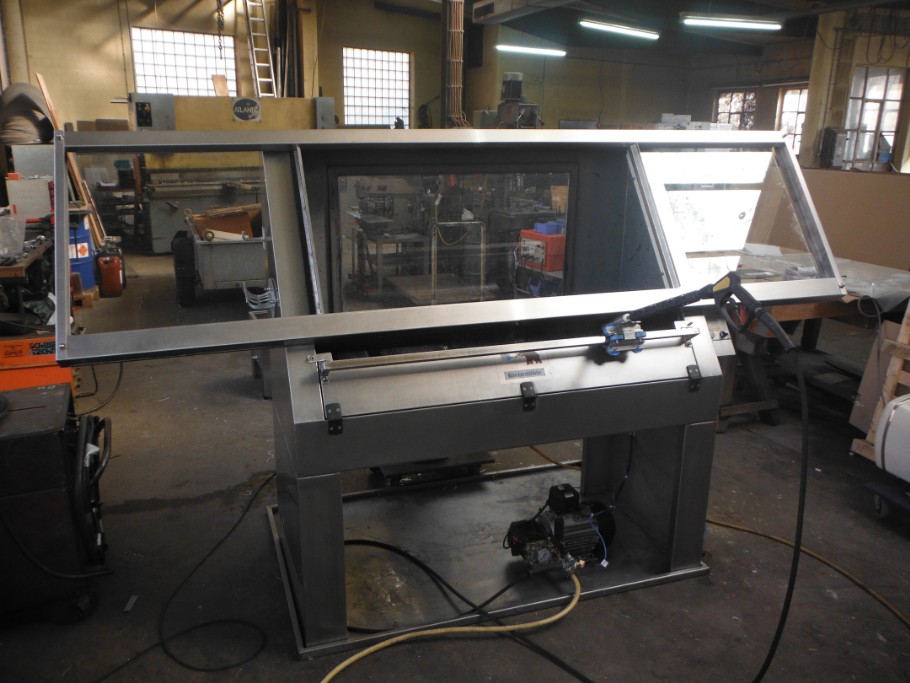

08/15 for gravure rollers
- High pressure pump 21l / 150bar with high pressure lance
- Compressed air drive for slow rotation of the gravure roller
- 60l tank with screw-in heater
- transparent plastic pane in the rear wall
- simple filtration integrated in the washing cycle
- Sliding panes made of safety glass
- Slide holder for high pressure lance> always the same distance to the items to be cleaned
Automatic screen washing system "Easy-Clean" combined with manual washing tub 08/15:
- extendable 58l stainless steel tanks
- simple pre- or post-cleaning of the screen is possible
- integrated inclined filter system
