Karussell-Oktagon
Waschanlagen > Anlagen für den Rotationsdruck
Fully automatic cleaning system "Carousel Octagon":
- Docking device for standard 58/200 l barrels (usage protection no. 20.2014 000 698.9)

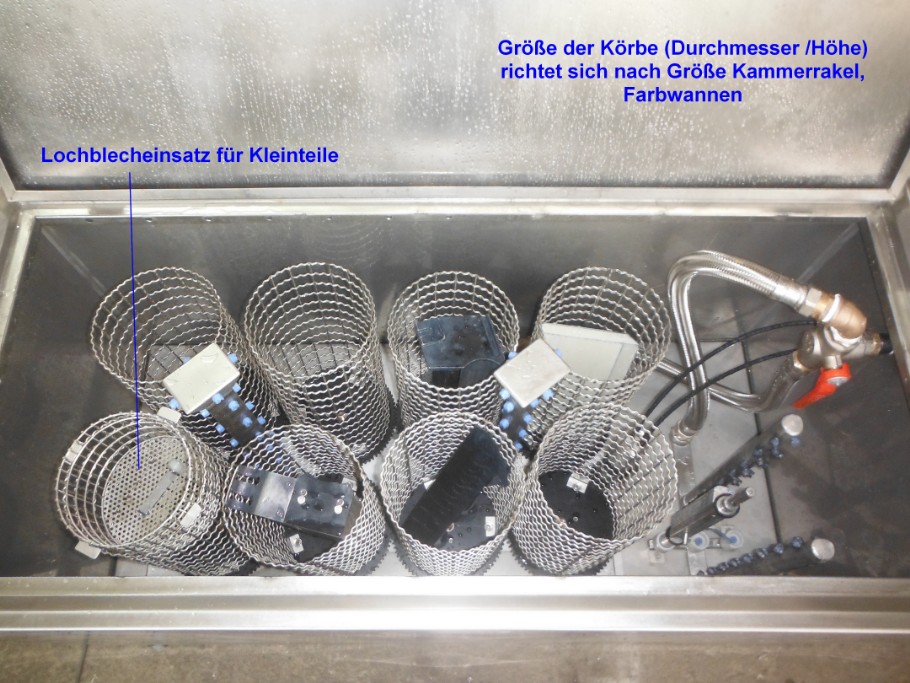

- 8 rotating universal baskets for chamber doctor blades, ink trays, rotating screens etc ...
- Drive wheels from electr. conductive plastic (POM-ELS)!
- Volume resistance ≤ 10 Ω x cm
- Surface resistance ≤ 10³ Ω
- pneum. control
- pneum. Diaphragm pumps
- mobile on castors
- Edge suction via Venturi nozzle
Advantages for the customer:
- Inexpensive system, as the tank is completely eliminated
- Lightning-fast, safe and clean change of the cleaning medium
- No more time-consuming tank cleaning that is hazardous to health!
- no unnecessary filling or emptying of the system
- When the cleaner is used up, the barrel with all dirt deposits is simply removed and replaced with a fresh barrel (the barrels can remain on the pallet!)
Now also with a station for cleaning 3 spray blades!
Fully automatic cleaning system for chamber doctor blades and ink trays "Karussell-Octagon 2.0":
- Universal docking device for 2 detergent barrels (registered for use protection !!)
- Docking device suitable for metal + plastic barrels !!
- Wash and rinse
- 4x pneum. Diaphragm pumps
- pneum. control
- 8 universal rotating washing baskets for holding chamber doctor blades and paint trays
