cascade filter for 200l barrels
Waschanlagen > Anlagen für den Sieb- und Textildruck

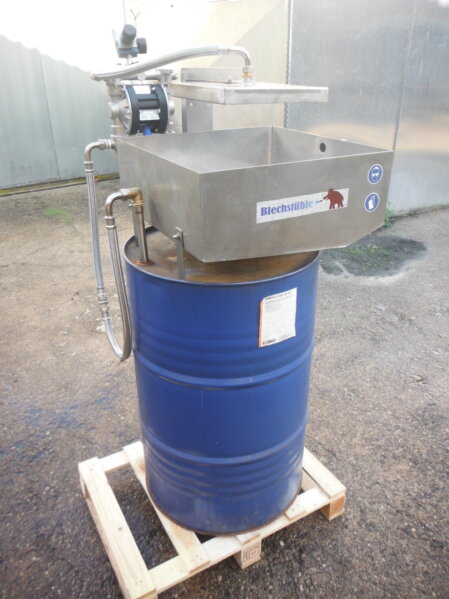

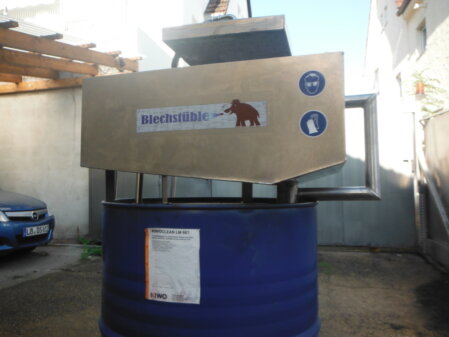

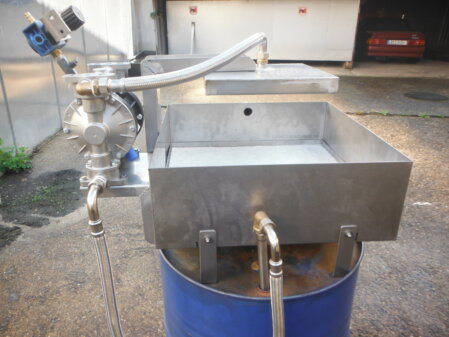

"Ride-on" cascade filter for 200l barrels to extend service life:
- Simple filter system for cleaning the contents of contaminated cleaning barrels
- Simply place it on the barrel containing the contaminated cleaner:
- Insert the filter outlet into the 2" opening of the barrel
- Insert the suction lance into the 3/4" opening of the barrel
- Connect the suction lance to the 1/2" diaphragm pump using a quick connector
- Connect the compressed air supply
- Load the filter drawers with the desired filter media
- Start the compressed air pump
- Up to 4 filter drawers stacked on top of each other
- Filter media available from 35 µm to 200 µm
- Filter area per drawer 550x550mm
- With overflow protection
- Special spray head for even distribution of the cleaner over the filter media
- Optionally available with a timer for the pump

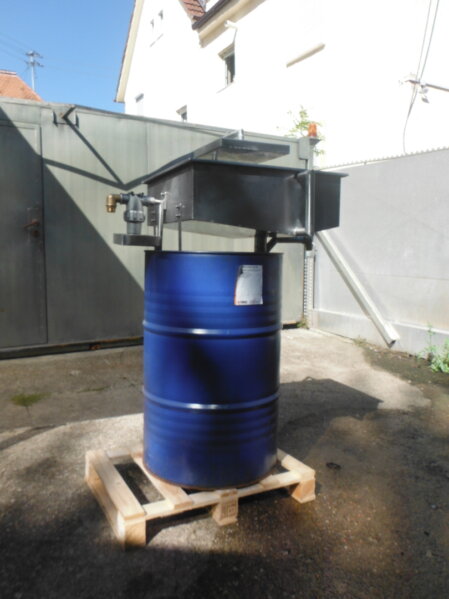

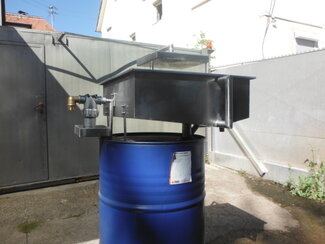

"Bypass"- cascade filter for 200l barrels to extend service life:
- For retrofitting existing car wash systems (e.g., carousel/octagon)
- Inlet and return lines are connected to the existing wash and refill pump
- Continuous filtration during every wash cycle
- Additional coarse filter in the inlet of the wash pump to protect the washer nozzles

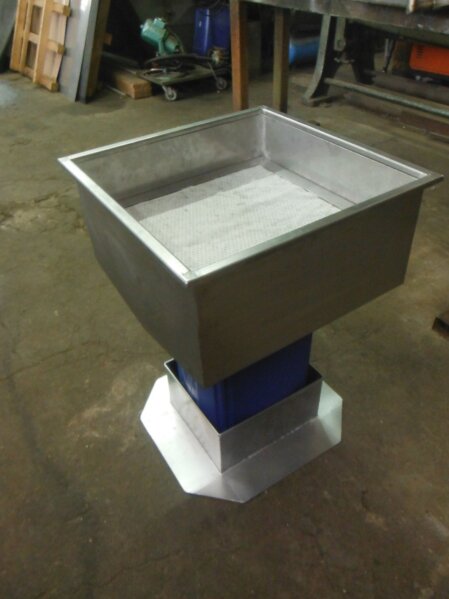

Sit-on filter for 25l canisters:
- simple filtering system for placing on commercially available 25l canisters
- 2 filter drawers with perforated sheet inserts, each with a capacity of 25lfilter
- drawers can be equipped with various filter fleeces
- place an empty canister in the frame (overturn protection)
- set the filter device on the canister and pour the contaminated cleaner into the filter from above.
