Waschtandem
Waschanlagen
Systems for the solar industry

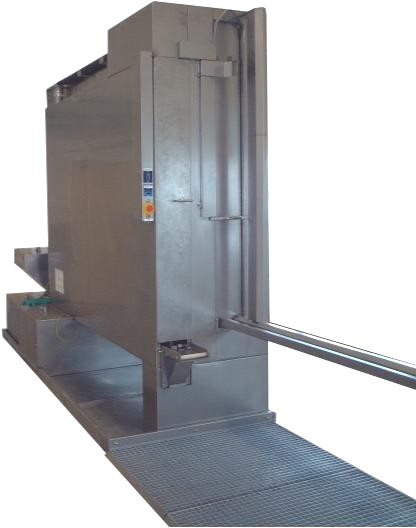

"Waschtandem-Solar" for cleaning stencils in solar production.
The system is located in the joint development center of Solland-Solar / Schott-Solar in Sittard / Netherlands
- max.screen size 2800x1850mm
- 4 rotating spraybars "The Gentle"
- pneum. control
- pneum. diaphragm pump
- Integrated inclined filter system "Klärwerk Gerold"
- Door edge suction via venturi nozzle
- Tank capacity approx. 400l
- extendable slide for stencils
- Filling and emptying device
- Drip chamber for two stencils
- Width approx. 1300 mm
- Length approx. 3800 mm (wash cabin)
- approx. 6600 mm (with loading station)
- Height approx. 2800 mm
